Fly Ash Pulverizer

HOME > PRODUCTS > Stone Pulverizer >

Introduction of fly ash pulverizer

Fly ash also called coal ash. Fly ash pulverizer, coal ash pulverizer is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness scale under seven, such as calcite, chalk, limestone, dolomite, carbon black, bentonite, kaolin, talc, mica, magnesite, illite, pyrophyllite , roseite, sea-foam, attapulgite , rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice etc. totally more than 100 kinds of materials.
Finished powder products are in the 325meshs -3000meshs, and yield can be up to 0.5-12 tons per hour. There are five types of Shanghai CLIRIK HGM series fly ash pulverizer, coalash pulverizer, they are HGM80, HGM90, HGM100, HGM100A and HGM125.

Applications of fly ash pulverizer：
The application of DMC-120 pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard

Production Line Configuration of fly ash pulverizer, coalash pulverizer:

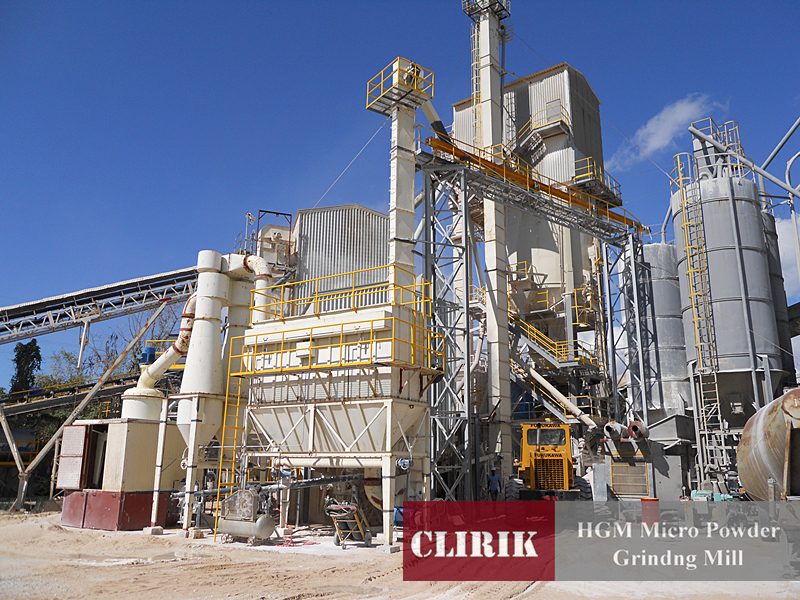

The whole set HGM fly ash pulverizer, coalash pulverizer consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems

Performance and features of Fly ash, coal ash pulverizer:
1. High efficiency
2. Long lifetime of wearing parts
3. High safety and reliability
4. High fineness of products
5. Environment friendly

Working Principle of fly ash pulverizer, coalash pulverizer:
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.

Technical Data of Flyash grinding mill, coalash grinder mill:

Model	HGM80	HGM90	HGM100	HGM100A	HGM125
Ring Diameter(mm)	800	930	1035		1300
Ring Number(PCS)	3	3～4	3	4	4
Roller Number(PCS)	21	24～32	27	34～36	40～44
Main Shaft Speed(r.p.m.)	230～240	200～220	180～200		135～155
Input Size(mm)	≦20
Finished Size/um(mesh)	5-47(325~2500)
Capacity (t/h)	0.5-4.5	0.6-6.5	0.7-7	1-8.5	1.5-12
Outlet Size (LWH, m)	13.946.2	14.74.87.2	184.68.6		14910.25
Motor Power(KW)	145-165	185-204	263	263-290	380-430

Note: This specification is just referencing, any changes are subject to the products.
