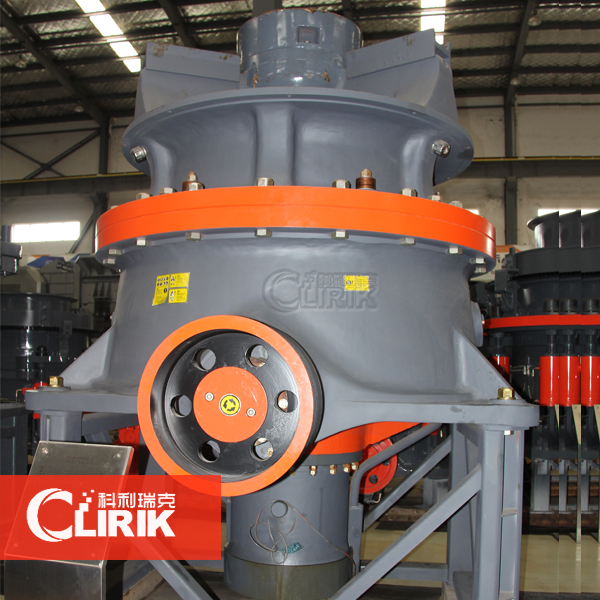

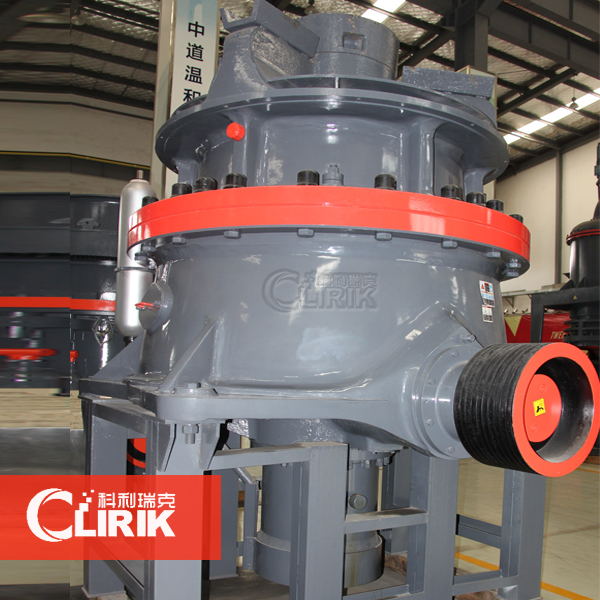

Hydraulic cone crusher pulverizer machine is the world advanced cone crusher developed by Tarzan, it is introduced Germany's most advanced technology. This crusher significantly improved the crushing capacity and product quality. Equipped with hydraulic lubrication system, it can guarantee the equipment operate reliably and also greatly reduce the labor input and time. It is widely used for mining ore crushing, high hardness stone crushing, building material crushing, cement plant and gravel manufacturing industry and so on.
Features of Hydraulic Cone Crusher Pulverizer Machine:
1. Intelligent design, higher efficiency
digital display of the crushing condition and equipment operation; program control; fault alarm; automatic adjustment for oil pressure; more intuitive observation; more convenient adjustment .
2. multi use, simple operation
It can be adjusted to three type of crushing cavity (coarse, medium, fine) by changing some wearing parts and the location of parts assembly. During the production, if the crushing cavity is blocked by hard iron and stopped instantly, there is no need to disassemble the equipment. The fault matter can be discharged automatically by the hydraulic device.
3. Lubrication system, more protection
each component can be lubricated sufficiently. Multi-points split hydraulic lubrication control system ensure the double-protection and overload protection for machine bearing lubricating.
4. Automatic adjustment, more convenient operation
Through controlling the hydraulic oil station, equipment can be controlled automatically and simplified the operation procedure.

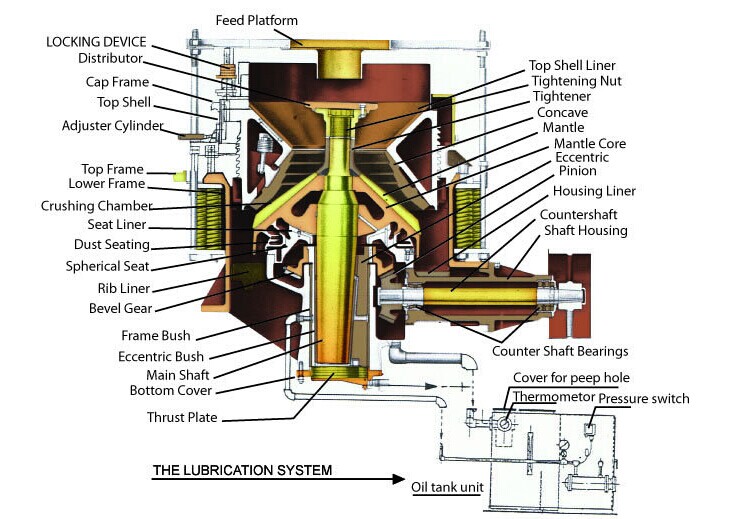

Working Principle of Hydraulic Cone Crusher Pulverizer Machine:
When hydraulic cone crusher pulverizer machine work, the rotation of the motor through the pulley or coupling, drive shaft and the cone of force in the eccentric sleeve moving around a fixed for rotary movement, so that the cone crusher in the crushing wall and near and sometimes leave is fixedly arranged on the regulating sleeve rolling white surface, the ore constantly under attack in the crushing cavity, extrusion and bending and crushing ore achieved. At unbreakable foreign body through the crushing chamber or for some reason Gravel hydraulic cone crusher is overloaded, the spring system of insurance, the mouth of discharge increases, foreign bodies from the crushing chamber is discharged, such as blocking in row ore using cavity cleaning system, so that the discharging continues to increase, so that the foreign body removal of crushing cavity.
Technical Data of Hydraulic Cone Crusher Pulverizer Machine:
|
Model |
Cavity |
Discharge Opening(mm) |
Max Feed Size(mm) |
Capacity(t/h) |
Motor Power(kw) |
Weight(t) |
Overall Dimensions(mm) |
|
CP155B |
standard super coarse type |
25-64 |
220 |
236-455 |
160 |
23 |
2790*2415*3240 |
|
standard coarse type |
19-51 |
205 |
172-378 |
|
standard medium type |
16-38 |
175 |
132-255 |
|
standard fine type |
13-31 |
115 |
109-181 |
|
CP155D |
short head super coarse type |
16-25 |
110 |
209-236 |
|
short head coarse type |
8-25 |
90 |
109-227 |
|
short head medium type |
6-16 |
75 |
82-163 |
|
short head fine type |
3-16 |
55 |
36-163 |
|
EP240B |
standard super coarse type |
38-64 |
313 |
538-743 |
250 |
45 |
3640*2954*3770 |
|
standard coarse type |
25-64 |
228 |
354-610 |
|
standard medium type |
22-51 |
205 |
258-437 |
|
standard fine type |
15-38 |
178 |
181-327 |
|
CP240D |
short head super coarse type |
13-25 |
113 |
253-336 |
|
short head coarse type |
20-25 |
113 |
190-336 |
|
short head medium type |
6-19 |
76 |
136-281 |
|
short head fine type |
5-13 |
60 |
90-209
|
