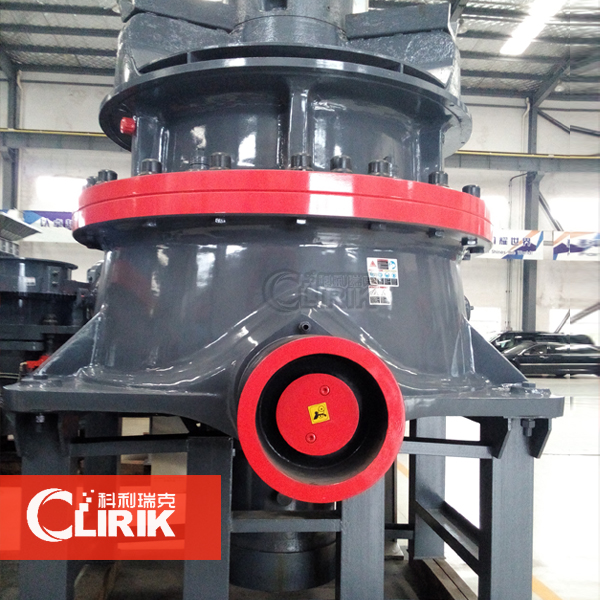

Spring Cone Crusher Pulverizer Machine

HOME > PRODUCTS > Crusher Pulverizer >

Spring cone crusher pulverizer machine is a kind of cone crusher which is manufactured in the former Soviet Union;it combines 1980s international technology and kinds of cone crushers' technology. The spring safety device is the overload protection device which can avoid the damage to the machine when metallic foreign body entre through the crushing cavity.The capacity of this machine is very big, owning to the technology of laminated crushing,finished products are mainly cubic shape and less needle-flake material. It is widely used in industries of metallurgy, architecture, road construction, chemical industry, phosphate.It is the preferred choice for secondary crushing equipment which is used for hard and medium mineral rock such as iron ore,copper ore, limestone, quartz, granite, basalt and dolerite.

Features & Advantages of Spring Cone Crusher Pulverizer Machine:
1. Robust and reliable design for hard stone crushing.
2. High productivity with lowest total cost.
3. Standard crushing chambers are available for each model.

4. The moving cone of this machine rotates continuously,the process of material crushing and products discharge carry out alternatively and continuously along the work surface, thus the product efficiency improved a lot by this solution.There is a equally parallel gap between the moving cone and the fixed cone,so the grain size of finished products are uniform.
5. Longer using life,reliable operation

Two kinds of sealing:dry oil or water makes sure that the dust can't enter the body. This solution can guarantee the cleanness of lubricating oil,extend the life of spherical bearings, and make the machine operate reliably.
6. Low operating cost, wide field of application

Due to large capacity,high reliability,easy maintenance,this machine can reduce the production cost heavily. It promotes the cone crusher to achieve greatest performance.It is applied for kinds of crushing technics:primary crushing to fine crushing;stationary crushing plant to mobile crushing plant.

Working Principle of Spring Cone Crusher Pulverizer Machine:
When the Gravels Spring Cone Crusher works, motor drives V-Belt, big belt wheel, transmission shaft, bevel pinion and bevel gear pinion to make eccentric bushing rotate. Crushing cone axis is forced by the eccentric bushing to spin, which makes mantle sometimes close to the bowl liner, and some times far away from the bowl liner. Therefore, materials in the annual crushing chamber formed by fixed and mobile cones are continuously impacted, squeezed, curved and crushed. After repeat procedures, materials are crushed into required size and discharged from the outlet of cone crusher.

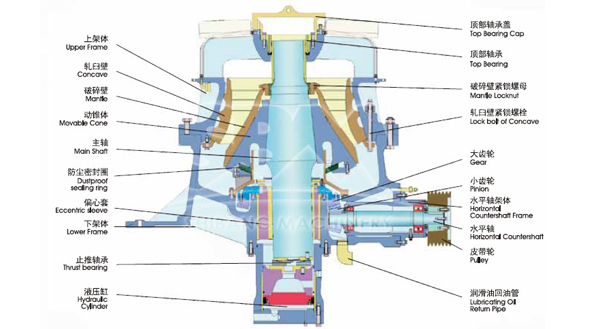

spring cone crusher pulverizer machine

Technical data of Spring Cone Crusher pulverizer machine

model	Max Feed Size(mm)	Discharge opening(mm)	Capacity(t/h)	Power(kw)	Weight(t)
PYD2200	100	5-15	120-340	280-260	75.3
PYZ2200	230	10-30	200-580	280-260	74.6
PYB2200	300	30-60	59-1000	280-260	75
PYD1750	85	5-13	75-230	160	50.2
PYZ1750	185	10-30	115-320	160	50.3
PYB1750	215	25-50	280-480	160	50.3
PYD1200	50	3-15	18-105	110	25.3
PYZ1200	100	8-25	42-135	110	25
PYB1200	145	20-50	110-168	110	24.7
PYD900	50	3-13	15-50	55	11.3
PYZ900	60	5-20	20-65	55	11.2
PYB900	115	15-50	50-90	55	11.2
PYD600	35	3-13	12-23	30	5.5
PYB600	65	12-25	40	30	5
