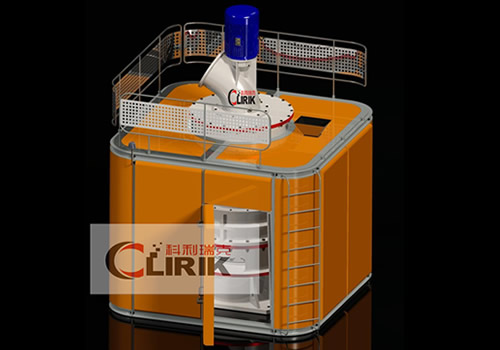

Micro Powder Pulverizer

HOME > PRODUCTS > Stone Pulverizer >

Brief Introduction of micro powder Pulverizer:
Micro powder Pulverizer is designed by our R&D department on the basis of multiple innovation and testing. It has been proved by thousands of customers that our machine has outstanding features, stable quality, easy operation and maintenance. It is the ideal equipment for fine powder milling.

Application of of micro powder Pulverizer：
Micro powder Pulverizer is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

Features of of micro powder Pulverizer:

● High Efficiency
Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
● Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
● High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
● High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
●Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
●Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.

Technical data of micro powder pulveriser:

Model	HGM80	HGM90	HGM100	HGM125	HGM168L
Ring Diameter(mm)	800	900	1000	1250	1680
Ring Number (PCS)	3	3-4	4	4	4
Roller Number(PCS)	18-21	24-29	28-36	30-44	30-40
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	135-155	120-130
Input Size (mm)	≤10	≤10	≤15	≤15	≤20
Finished Size (um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	100-6 (150-2000)	100-9 (150-1500)
Capacity (t/h)	0.4-4.5	0.6-6.5	1-9	2-16	3.8-30
Outlet Size LWH (m)	13.946.2	14.74.87.2	184.68.6	14910.25	26.37.511.9

Note: This specification is just referencing, any changes are subject to the products.
