Types of Pulverizer 2013-11-14 15:35

There are some types of pulverizer, different type with different technonical data, But the most different is the capacity,`So the customer should choose the suitable type.

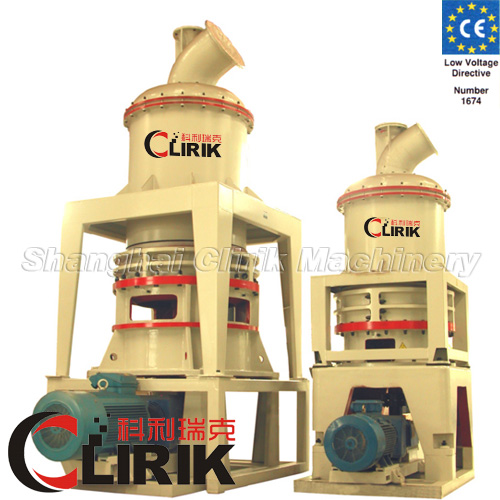

The pulverizer is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.
There are some types of pulverizer, different type with different technonical data, But the most different is the capacity,`So the customer should choose the suitable type.

Model HGM80 HGM90 HGM100 HGM100A HGM125
Ring Diameter(mm) 800 930 1035 1035 1300
Ring Number (PCS) 3 3-4 3 4 4
Roller Number(PCS) 21 24-32 27 34-36 40-44
Main Shaft Speed (r. p. min) 230-240 200-220 180-200 180-200 135-155
Input Size (mm) ≤20
Finished Size (um) 5-47(325-2500)
Capacity (t/h) 0.5-4.5 0.6-6.5 0.7-7 1-8.5 1.5-12
Outlet Size L*W*H (m) 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 18*4.6*8.6 14*9*10.25
Motor powder (KW) 145-165 185-204 263 263-290 380-430
